Rapid Deployment Cable
DETAILS OF 04 & 06 FIBER RAPID DEPLOYMENT CABLE
Cable Construction

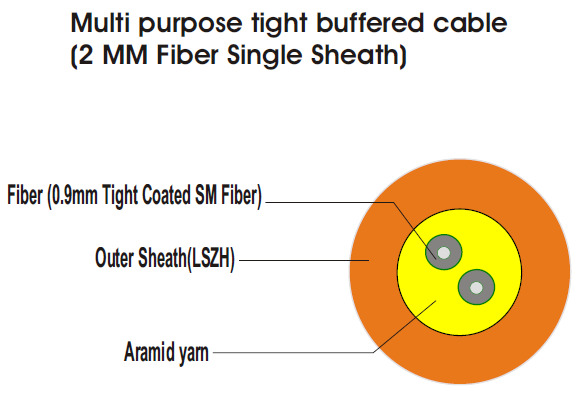

Cross-sectional drawings of RAPID DEPLOYMENT are attached. Some details are as under:
Number of fiber 04 & 06
Inner sheath material: Polyurethane
Inner sheath thickness: 1.0 mm +/- 10% average, min. at any point +/- 20%
Outer sheathing material: Polyurethane
Sheath thickness: 0.6 mm +/- 10% average, min. at any point +/- 20%
Single sheath Cable diameter: 5.3 mm for 4-fiber & 7.0 mm for 6-fiber +/- 10%
Double Sheath Cable Diameter: 6.3 mm for 4-fiber & 8.0 mm for 6-fiber +/- 10%
Steel Tape/ Double
Sheath Cable diameter: 8.4 mm for 4-fiber & 9.0 mm for 6-fiber +/- 10%
Cable weight Single Sheath: 20 kgs for 4 fiber & 35 kgs for 6 fiber
Cable weight Double Sheath: 30 kgs for 4 fiber & 35 kgs for 6 fiber
Cable weight Double Sheath/Steel Tape: 60 kgs for 4 fiber & 65 kgs for 6 fiber
Nominal cable length: 500 meters & 1000 meters per spool +/- 10 %
Mechanical Properties of Cable
Tensile strength single sheath: 700 N for 4 fiber and for 6 fibers
As per IEC-794-1-E1, DOD-3010, TIA/EIA-455-33A
Tensile strength Double Sheath: 1000 N for 4 fiber and for 6 fibers
As per IEC-794-1-E1, DOD-3010, TIA/EIA-455-33A
Crush strength: 700 N/10 cm for 1minute
As per IEC 794-1-E3, DOD-2040, TIA/EIA-455-41A
Temperature cycling: -10 to +70 °C 10 cycles
As per IEC 794-1-F1, DOD-4010
